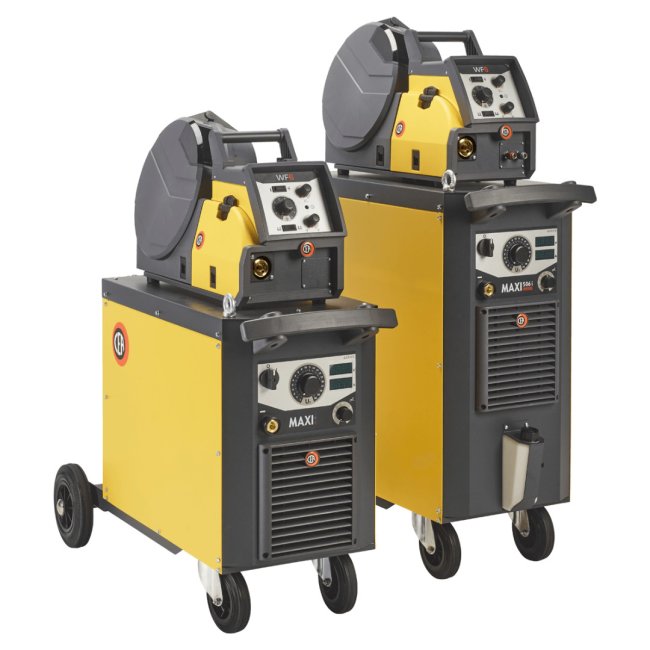

CEA MAXI 506i Mig Inverter Welding Machine 400V

CEA MAXI 506i Mig Inverter Welding Machine 400V

The CEA Maxi 506i is the successor to ever popular Maxi 505 which has been discontinued in the EU as a result of Directive 2009/125/EC which stipulates that all Industrial MIG/MAG machines must have an absorption rate of <30W and a Power Factor of 0.92/0.99 cos, this assists greatly in reducing energy consumption which CEA and our competitors transformer based machines cannot achieve. The Maxi 506i is an Inverter Unit with infinitely variable electronic voltage adjustment.

CEA are very cognisant of the fact that there are large quantities of the conventional Maxi 505 in use in the EU market and have taken the unprecedented step of designing the 506i in a way that all accessories are interchangeable with the older 505 model. This means that current CEA Maxi owners can switch Feeders, Cables etc between new & old. The Maxi 506i is equipped with the WF5 Feeder which is already used with current Maxi 505 machines. A Water cooled version is also available in the range


Features:-

Current Range 20 – 500 Amps
Infinitely Variable Electronic Control
Digital Amp / Voltmeter Kit
Duty cycle 500 amps @ 35%
Power Factor 0.92/0.99 cos
WF5 Completely enclosed wire feed unit
O.C.V. 50 Volts
Wire sizes 0.6 – 1.6mm



Air Cooled Machine Package:





Maxi 506i 400V Inverter Power Source



Maxi 506i Under-gear w/ Cylinder Carrier


WF5 Fully Enclosed H/D 4-Roll Wire Feed Unit


WF5 Axle & Wheel Kit


WF5 Feed Roll Kit (Steel) 1.0mm/1.2mm


5-Metre Air Cooled Interconnection Cable (*Optional 10-Meter Cables)



Argon Flow Regulator


Air cooled Torch Package


4-Meter Earth Lead 50mm² w/ 600A Clamp
